Ultrasonic LABEL CUTTING AND FOLDING MACHINE - 剪折机系列

MHJ-900DS-Ultrasonic LABEL CUTTING AND FOLDING MACHINE

CHARACTERISTICS ADVANTAGES MAIN TECHNICAL VARIABLES

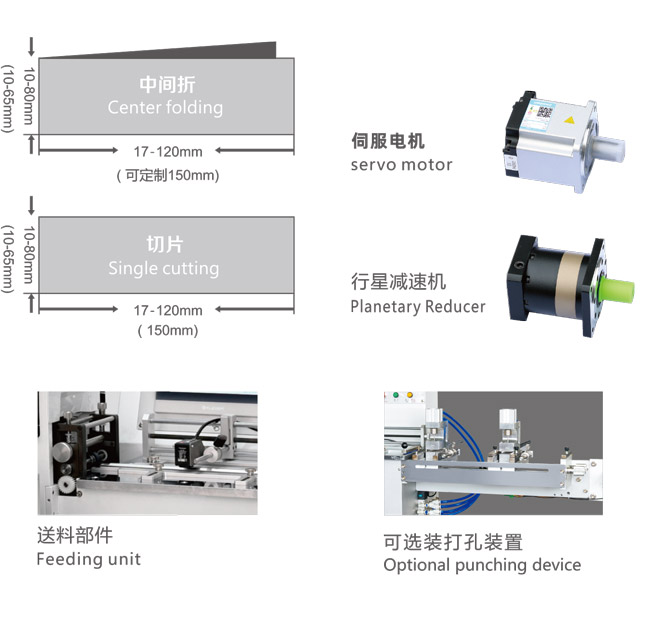

The MHJ-900DS ultrasonic shearing and dismantling machine has the characteristics of compact structure, simple operation, and no need to replace the mold; Equipped with three cutting functions: ultrasonic cutting, cold cutting, and hot cutting; It can be folded in the middle and has a waste disposal function.

MODEL	MHJ-900DS
Cutting Method 切断方式	冷切、热切 Cold cutting Hot cutting
Shearing And Folding Types 切折种类	切片、中间折 Slices Center Fold
Cutting Length 切割长度	17-240mm（可定制 300mm）
Cutting Width 切割宽度	10-80mm(10-65mm)
Cutting Speed (pcs/min) 切割速度 (片 / 分钟)	30-230 片 /min
Power 电源	AC:220V,50Hz(60Hz)1.8KW
Dimension (LxWxH) 外形尺寸 (长 x 宽 x 高)	1600×950×1460mm
Weight 重量	270kg
