MHJ-900-Push-type multi-functional label cutting and folding machine (hot and cold cutting)

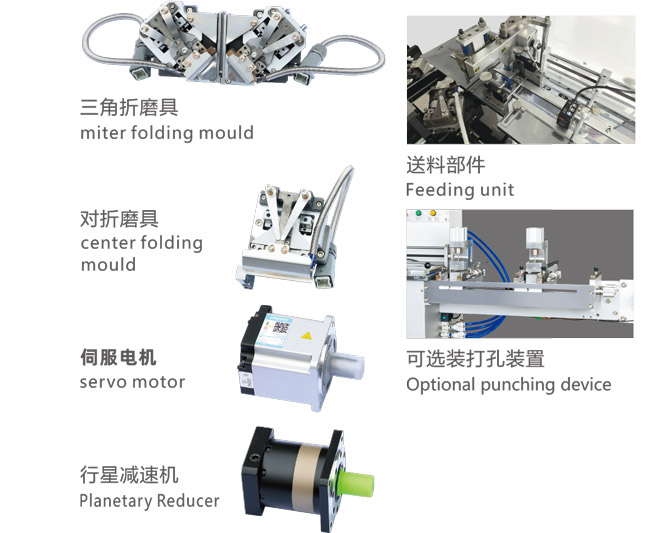

MHJ - 900 type label shearing and folding machine is of a compact structure and simple operation and an automatic sliding path of label and able to shear and fold 5 types of trademarks by only replacing the mould, uses a nixie circuit to actuate the main machine and carry out a soft initiation and is fitted with a high performance photoelectric system to automatically identify trademarks and stop at once in case of no trademark of a false one. Futhermore. The system holds the feature of adjustable label length without any tool and can be separately fitted with an electronic eye system upon the need of users. This system is mainly used for pnnting labels and cutting and folding those without push-line.
MODEL MHJ-900
Shearing And Folding Type 切折种类 切片、两边折、中间折、三角折、长短折
Single Cutting,end Folding,center Folding,miter Folding,length-short Folding
Cutting Length 切割长度 15-150mm
Cutting Width 切割宽度 10-75mm
Cutter Type 切刀种类 冷切、热切 Cold cutting Hot cutting
Cutting Speed (pcs/min) 切割速度 30-230 片 /min
Power 电源功率 单相 Single-phase220V50-60Hz
Electricity Consumption 耗电量 2.4kw
Weight 机械重量 365kg
Dimensions (L×W×H) 外形尺寸 1600×1150×1370mm
